NXP 公司的JN5148-001是超低功耗高性能无线微控制器(MCU)，具有32位RISC处理器特性，还集成了2.4GHz IEEE802.15.4兼容的收发器，128KB ROM，128KB RAM和各种丰富的模拟与数字外设，可以运行JenNet和ZigBee PRO。收发器的数据速率500和667kbps，工作电压2.0V-3.6V，MCU的时钟速率4- 32MHz。主要用在机器人和安全低功耗无线应用，JenNet和ZigBee PRO网络，智能计量，家庭和商业建筑物自动化，工业系统，遥控，手持医疗保健设备，玩具和游戏外设等。本文介绍了JN5148-001主要特性和优势，功能框图，无线电框图，调制解调器框图和基带处理器框图，参考模块电路图和材料清单以及采用JN5148的手持医疗保健设备框图。
The JN5148-001 is an ultra low power, high performance wireless microcontroller targeted at JenNet and ZigBee PRO networking applications. The device features an enhanced 32-bit RISC processor offering high coding efficiency through variable width instructions, a multi-stage instruction pipeline and low power operation with programmable clock speeds. It also includes a 2.4GHz IEEE802.15.4 compliant transceiver, 128kB of ROM, 128kB of RAM, and a rich mix of analogue and digital peripherals. The large memory footprint allows the device to run both a network stack (e.g. ZigBee PRO) and an embedded application or in a co-processor mode. The operating current is below 18mA, allowing operation direct from a coin cell.
Enhanced peripherals include low power pulse counters running in sleep mode designed for pulse counting in AMR applications and a unique Time of Flight ranging engine, allowing accurate location services to be implemented on wireless sensor networks. It also includes a 4-wire I2S audio interface, to interface directly to mainstream audio CODECs, as well as conventional MCU peripherals.
JN5148-001优势：
• Single chip integrates transceiver and microcontroller for wireless sensor networks
• Large memory footprint to run ZigBee PRO or JenNet together with an application
• Very low current solution for long battery life
• Highly featured 32-bit RISC CPU for high performance and low power
• System BOM is low in component count and cost
• Extensive user peripherals
JN5148-001主要特性：
收发器：
• 2.4GHz IEEE802.15.4 compliant
• Time of Flight ranging engine
• 128-bit AES security processor
• MAC accelerator with packet formatting, CRCs, address check, auto-acks, timers
• 500 & 667kbps data rate modes
• Integrated sleep oscillator for low power
• On chip power regulation for 2.0V to 3.6V battery operation
• Deep sleep current 100nA
• Sleep current with active sleep timer 1.25μA
• <$0.50 external component cost
• Rx current 17.5mA
• Tx current 15.0mA
• Receiver sensitivity -95dBm
• Transmit power 2.5dBm
MCU特性：
• Low power 32-bit RISC CPU, 4 to 32MHz clock speed
• Variable instruction width for high coding efficiency
• Multi-stage instruction pipeline
• 128kB ROM and 128kB RAM for bootloaded program code & data
• JTAG debug interface
• 4-input 12-bit ADC, 2 12-bit DACs, 2 comparators
• 3 application timer/counters,
• 2 UARTs
• SPI port with 5 selects
• 2-wire serial interface
• 4-wire digital audio interface
• Watchdog timer
• Low power pulse counters
• Up to 21 DIO
Industrial temp (-40℃ to +85℃)
8x8mm 56-lead Punched QFN
Lead-free and RoHS compliant
JN5148-001应用：
• Robust and secure low power wireless applications
• ZigBee PRO and JenNet networks
• Smart metering (e.g. AMR)
• Home and commercial building automation
• Location Aware services – e.g. Asset Tracking
• Industrial systems
• Telemetry
• Remote Control
• Toys and gaming peripherals

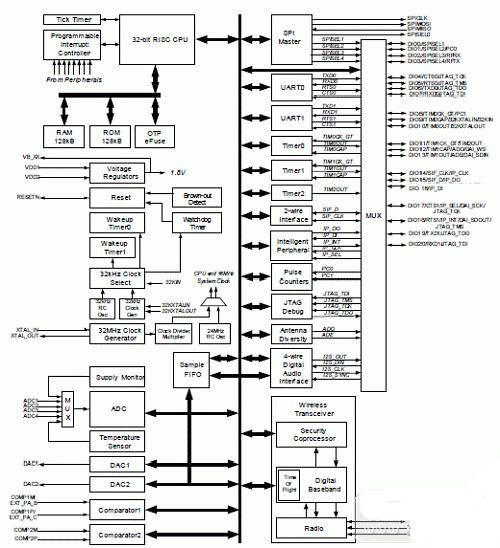

图1。JN5148-001方框图
图2。JN5148-001详细功能框图
图3。JN5148-001无线电框图
